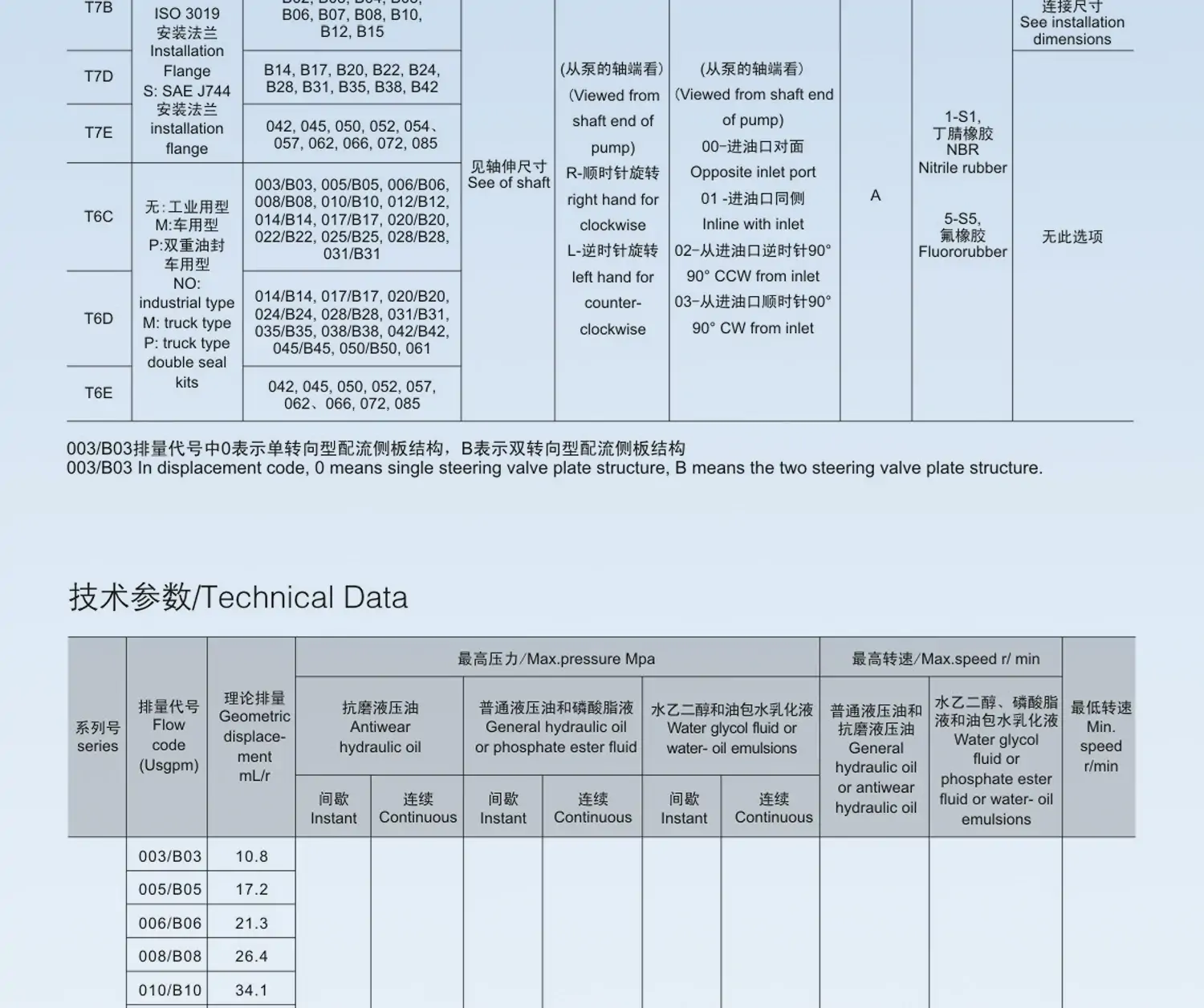

一、型号解析

T67DDBS 为三联高压定量叶片泵（T67D 系列、三联、D 级排量、标准密封、SAE 安装）。

• T67：系列代号，重型高压三联叶片泵。
• D：D 级泵芯（单联排量 48–158 mL/r）。
• D：第二联泵芯（同 D 级）。
• B：第三联泵芯（B 级，排量 50–100 mL/r）。
• S：SAE 标准安装法兰（6 孔安装）。

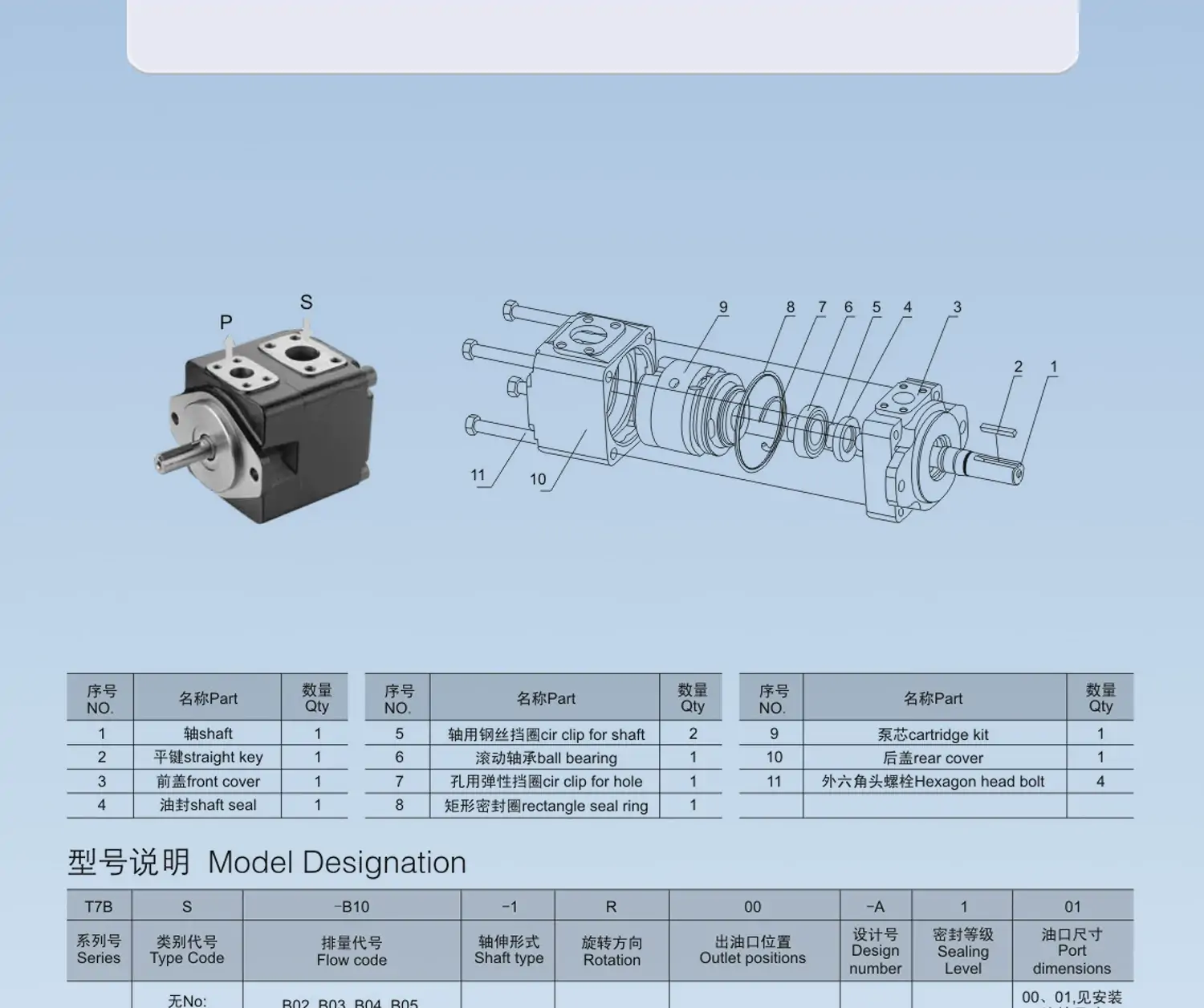

二、结构组成

• 泵体：高强度铸铁，整体式三联结构，刚性强、抗振、散热好。
• 三组泵芯（定子 / 转子 / 双唇叶片）：定子：内曲线高耐磨合金，双作用压力平衡设计。转子：开 12 道叶片槽，配双唇叶片（双接触唇）。叶片：12 组双唇叶片，底部柱销推动，双唇交替贴合定子，磨损低、寿命长。
• 配流盘：前后浮动侧板，自动补偿轴向间隙，维持高容积效率。
• 泵轴：加粗平键轴，三联径向力平衡，轴承负载低。
• 密封：标准丁腈橡胶（-20℃~+80℃），可选氟橡胶（高温）。
• 模块化泵芯：三组泵芯可独立现场更换，无需拆泵体。

三、工作原理

1. 吸油：转子旋转，叶片离心甩出，油腔容积扩大，油液经吸油口吸入。
2. 压油：转子继续转动，油腔容积缩小，油液加压后从排油口输出。
3. 双作用平衡：转子每转一周，完成两次吸油 / 压油，径向力相互抵消，运行平稳、噪声低。
4. 三联独立供油：三组泵芯同轴独立工作，可输出三路不同压力 / 流量油液，满足复杂系统需求。

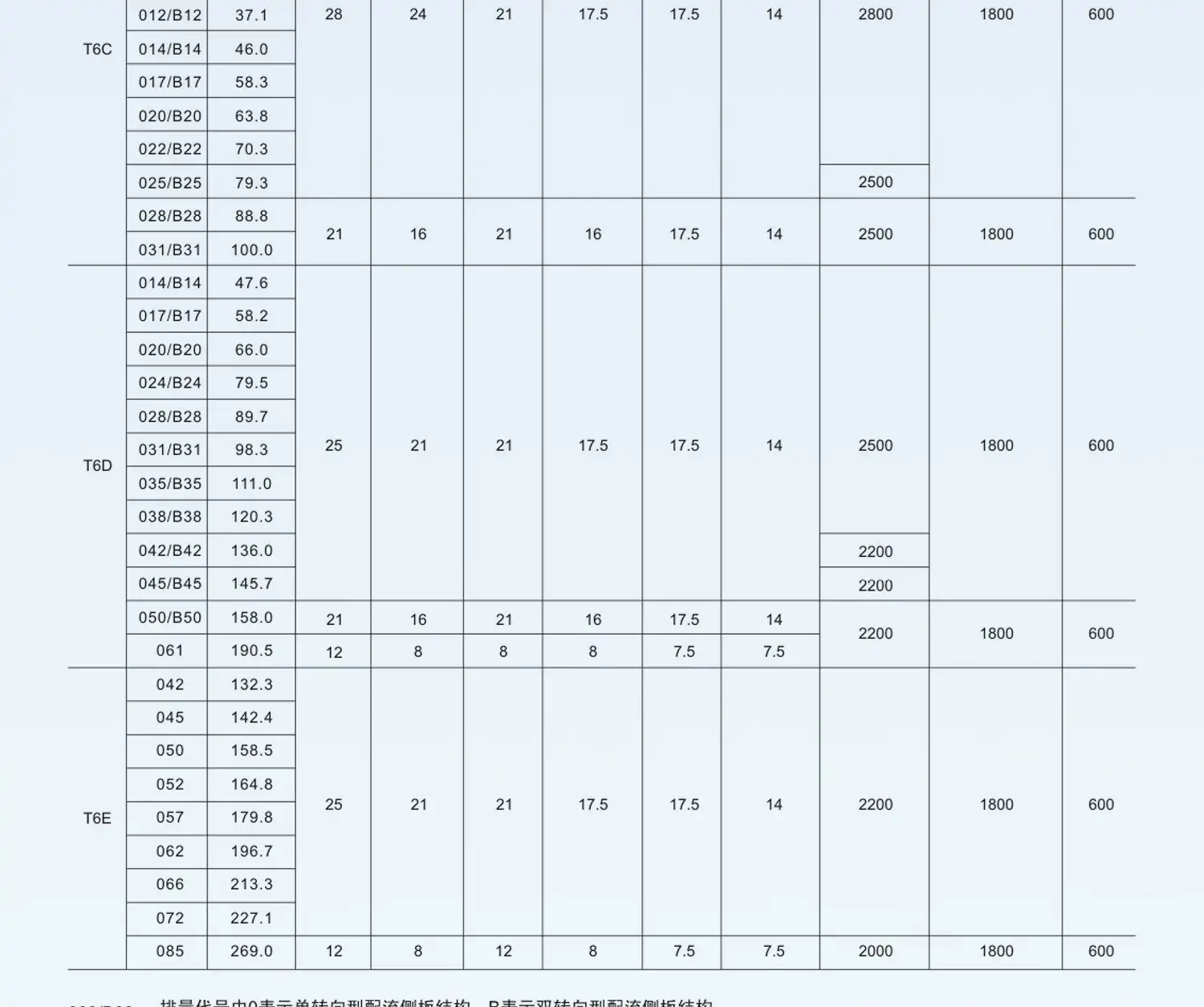

四、核心参数（标准工况）

• 几何排量：P1：48–158 mL/r；P2：48–158 mL/r；P3：50–100 mL/r。
• 额定压力：P1：240 bar；P2：240 bar；P3：240 bar。
• 最高峰值压力：P1：275 bar；P2：275 bar；P3：275 bar。
• 转速范围：600–2800 rpm（推荐 1200–1800 rpm）。
• 容积效率：≥94%（150 bar、1500 rpm）。
• 噪声：≤68 dB（A）（150 bar、1500 rpm）。
• 介质粘度：10–860 cSt（推荐 32–68 cSt 抗磨液压油）。
• 工作温度：−20℃～+80℃（氟橡胶密封可达 + 120℃）。
• 重量：≈56 kg。

五、性能优势

1. 三联独立供油：三路独立压力 / 流量输出，系统集成度高、成本低。
2. 高压高效：240 bar 额定压力，双唇叶片 + 浮动侧板，容积效率高、内泄小、发热低。
3. 低噪平稳：12 叶片设计 + 双作用压力平衡，流量脉动小（±2 bar）、噪声低，适合精密设备。
4. 耐久可靠：双唇叶片 + 柱销推动，叶片对定子压力小、磨损低、寿命长。
5. 结构紧凑：三联集成，体积小、重量轻，安装空间小。
6. 维护简便：模块化泵芯可独立现场更换，无需专业工具，停机时间短。
7. 抗污染强：双唇结构叶片，抗污染能力优异，适应恶劣工况。

六、典型应用

• 大型注塑机、压铸机（多动作同步控制、高压大流量回路）。
• 冶金设备、工程机械（多执行器独立控制、中高压系统）。
• 工业自动化生产线（复杂液压系统、多压力 / 流量需求）。

七、使用注意

1. 油液清洁：建议10 μm过滤，避免颗粒磨损定子与叶片。
2. 转速控制：避免长期低于 600 rpm 或高于 2800 rpm，防止效率下降或过热。
3. 压力匹配：长期工作压力建议≤180 bar，延长泵芯寿命。
4. 安装同轴度：联轴器同轴度≤0.1 mm，避免振动与异响。
