一、型号解析

T6D-038-1R00-A1 为单联定量高压叶片泵（T6D 系列、38 排量、标准配置）。

• T6D：系列代号，中型高压单联叶片泵。
• 038：几何排量 38 mL/r。
• 1：轴伸规格（1 型，平键轴，SAE C 法兰）。
• R：旋转方向（右旋，从轴端看顺时针）。
• 00：油口布置（进油口在下、出油口在上，标准方位）。
• A1：密封与设计版本（A = 标准丁腈橡胶密封；1 = 标准压力 / 结构设计）。

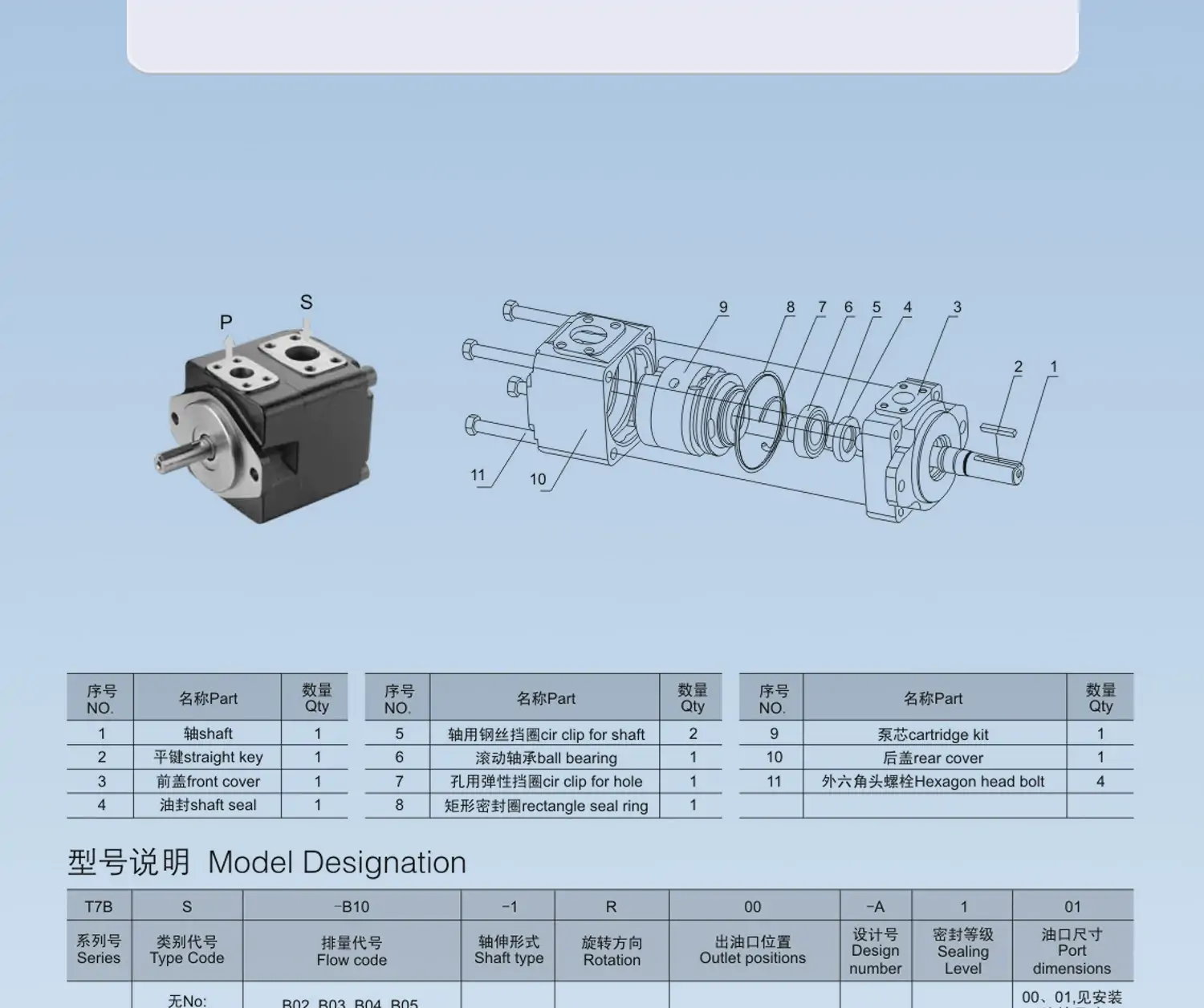

二、结构组成

• 泵体：高强度铸铁，整体式结构，刚性强、抗振、散热好。
• 定子 / 转子 / 双唇叶片：定子：内曲线高耐磨合金，双作用压力平衡设计。转子：开 12 道叶片槽，配双唇叶片（双接触唇）。叶片：12 组双唇叶片，底部柱销推动，双唇交替贴合定子，磨损低、寿命长（为普通叶片 2 倍以上）。
• 配流盘：前后浮动侧板，自动补偿轴向间隙，维持高容积效率。
• 泵轴：加粗平键轴，径向力平衡，轴承负载低。
• 密封：标准丁腈橡胶（-20℃~+80℃），可选氟橡胶（高温）。
• 模块化泵芯：定子 / 转子 / 叶片 / 配流盘总成，可现场更换，无需拆泵体。

三、工作原理

1. 吸油：转子旋转，叶片离心甩出，油腔容积扩大，油液经吸油口吸入。
2. 压油：转子继续转动，油腔容积缩小，油液加压后从排油口输出。
3. 双作用平衡：转子每转一周，完成两次吸油 / 压油，径向力相互抵消，运行平稳、噪声低。
4. 双唇叶片补偿：双唇交替接触定子，底部柱销推动，高压下贴合更紧、内泄更小、效率更高。

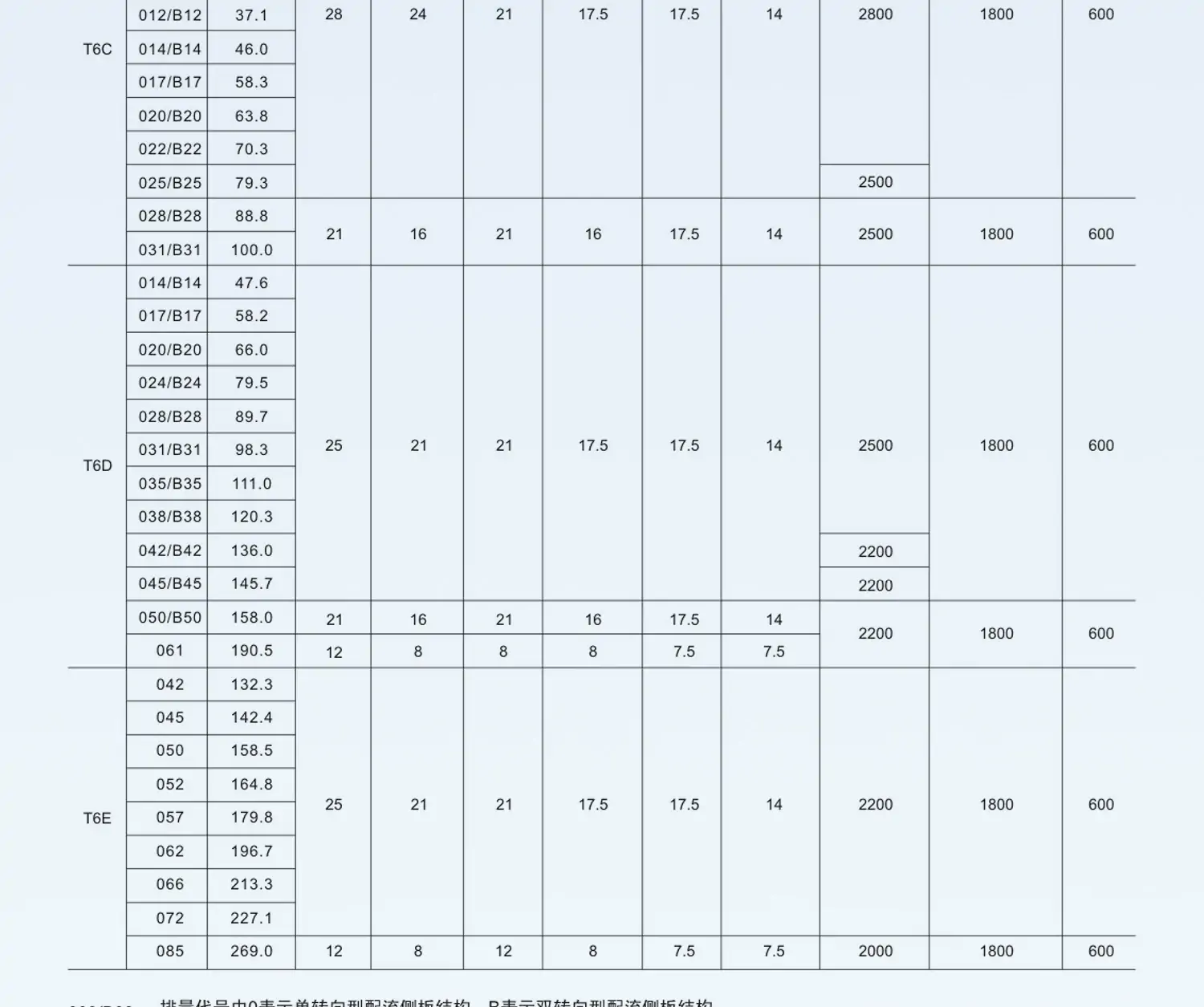

四、核心参数（标准工况）

• 几何排量：38 mL/r
• 额定压力：210 bar（21 MPa）
• 最高峰值压力：275 bar（27.5 MPa）
• 转速范围：600–2800 rpm（推荐 1200–1800 rpm）
• 容积效率：≥94%（150 bar、1500 rpm）
• 噪声：≤65 dB（A）（150 bar、1500 rpm）
• 介质粘度：10–860 cSt（推荐 32–68 cSt 抗磨液压油）
• 工作温度：−20℃～+80℃（氟橡胶密封可达 + 120℃）
• 重量：≈21 kg

五、性能优势

1. 高压高效：210 bar 额定压力，双唇叶片 + 浮动侧板，容积效率高、内泄小、发热低。
2. 低噪平稳：12 叶片设计 + 双作用压力平衡，流量脉动小（±2 bar）、噪声低，适合精密设备。
3. 耐久可靠：双唇叶片 + 柱销推动，叶片对定子压力小、磨损低、寿命长。
4. 结构紧凑：单联集成，体积小、重量轻，安装空间小。
5. 维护简便：模块化泵芯可现场更换，无需专业工具，停机时间短。
6. 抗污染强：双唇结构叶片，抗污染能力优异，适应恶劣工况。

六、典型应用

• 注塑机、压铸机、液压成型机（中高压、稳定流量回路）。
• 机床、冶金设备、工程机械（中高压、低噪、高可靠系统）。
• 工业自动化生产线（单执行器或多执行器同步控制）。

七、使用注意

1. 油液清洁：建议10 μm过滤，避免颗粒磨损定子与叶片。
2. 转速控制：避免长期低于 600 rpm 或高于 2800 rpm，防止效率下降或过热。
3. 压力匹配：长期工作压力建议≤180 bar，延长泵芯寿命。
4. 安装同轴度：联轴器同轴度≤0.1 mm，避免振动与异响。
