一、型号解析

T67DDBS 为三联定量叶片泵（T67 系列、D 壳体、三联、标准设计）。

• T67：系列代号，三联泵配置。
• D：壳体规格（D 型，中大排量）。
• DB：三联结构（前 / 中 / 后三泵同轴）。
• S：标准设计（标准压力、标准密封）。
• 完整型号通常带排量：T67DDBS-XXX-XXX-XXX（前泵 - 中泵 - 后泵排量，单位 mL/r）。

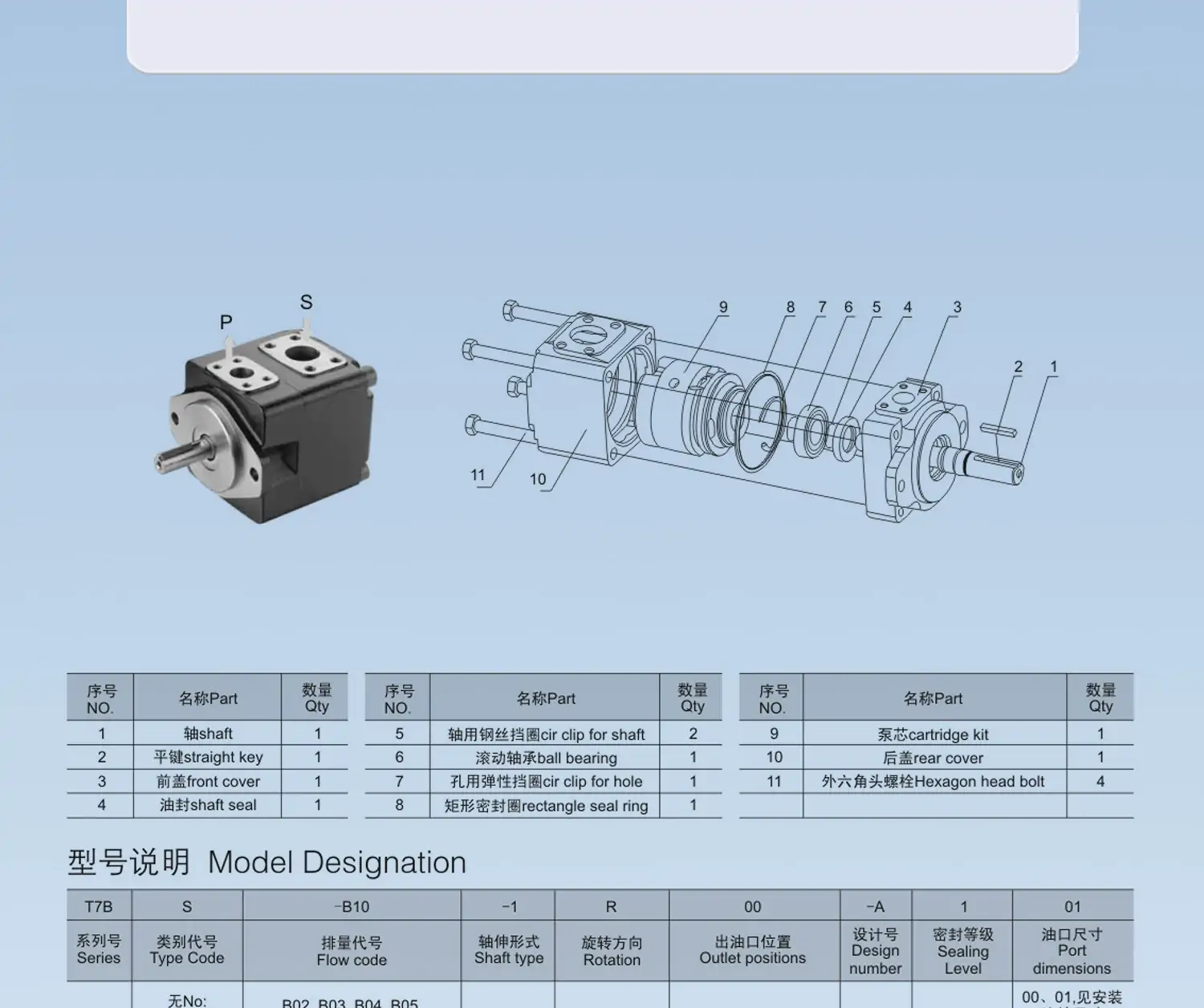

二、结构组成

• 泵体：高强度铸铁，黑色磷化，三腔独立、整体刚性强，抗振散热好。
• 定子 / 转子 / 双唇叶片（三联泵芯）：定子：3 组内曲线高耐磨合金，压力平衡设计。转子：3 组同轴转子，开叶片槽，柱销式双唇叶片驱动。叶片：双唇结构，两唇交替接触定子，高压贴合更紧、磨损低、寿命长。
• 配流盘：3 组浮动侧板，自动补偿轴向间隙，维持高容积效率。
• 泵轴：加粗花键 / 平键，三泵同轴驱动，径向力平衡，轴承负载低。
• 密封：标准丁腈橡胶，可选氟橡胶（高温 / 特殊介质）。
• 模块化泵芯：三组独立可更换泵芯，现场无需拆泵体，维护便捷。

三、工作原理

1. 吸油：同轴三转子同步旋转，叶片离心甩出，三腔容积同步扩大，油液经各自吸油口吸入。
2. 压油：转子继续转动，三腔容积同步缩小，油液加压后从独立排油口输出。
3. 三联协同：三泵独立出油、同轴驱动，可组合为 “高压小流量 + 中压中流量 + 低压大流量” 回路，适配复杂系统。
4. 压力平衡：叶片底部通压力油，柱销推动，径向力平衡，磨损小、噪声低、运行平稳。

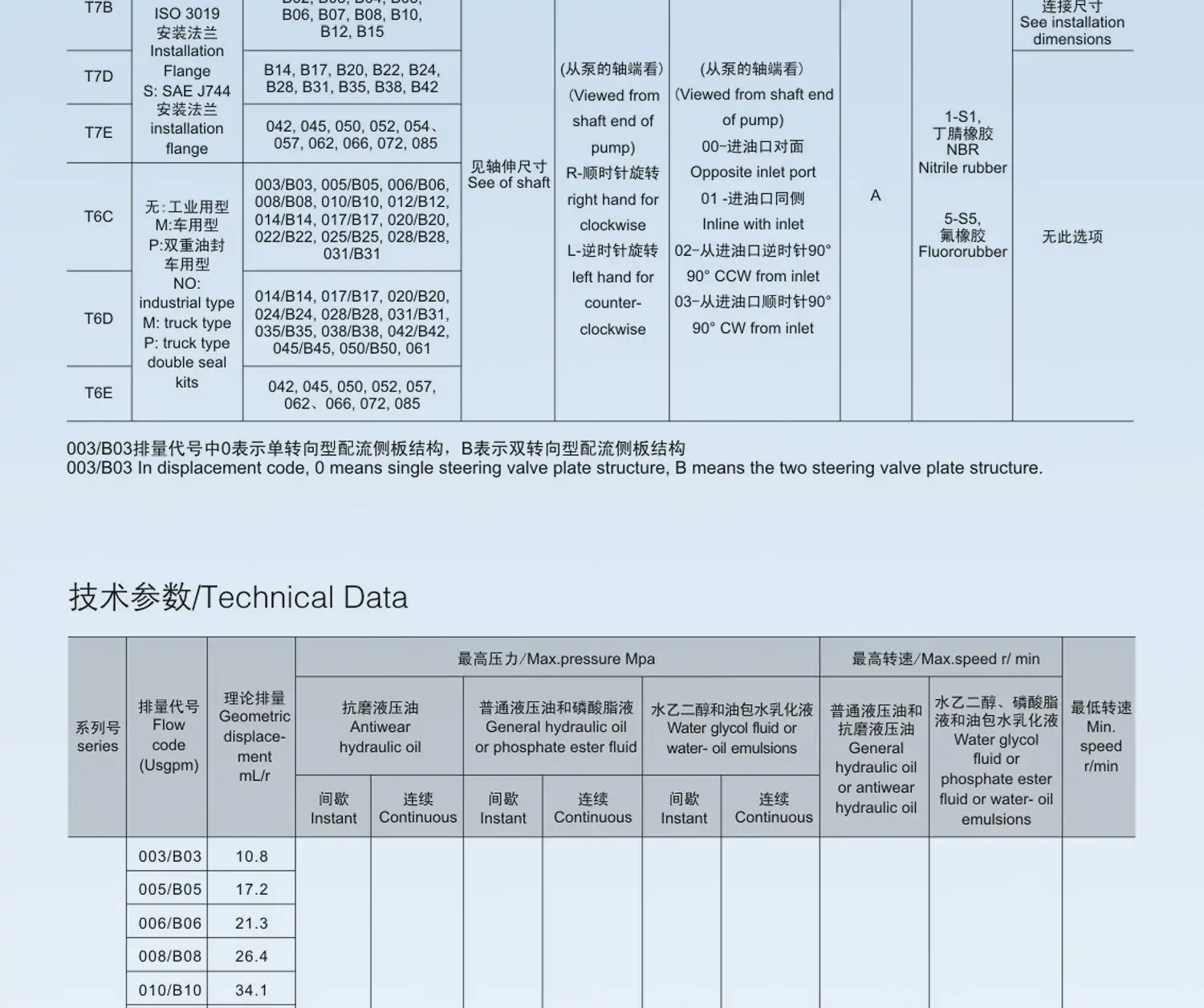

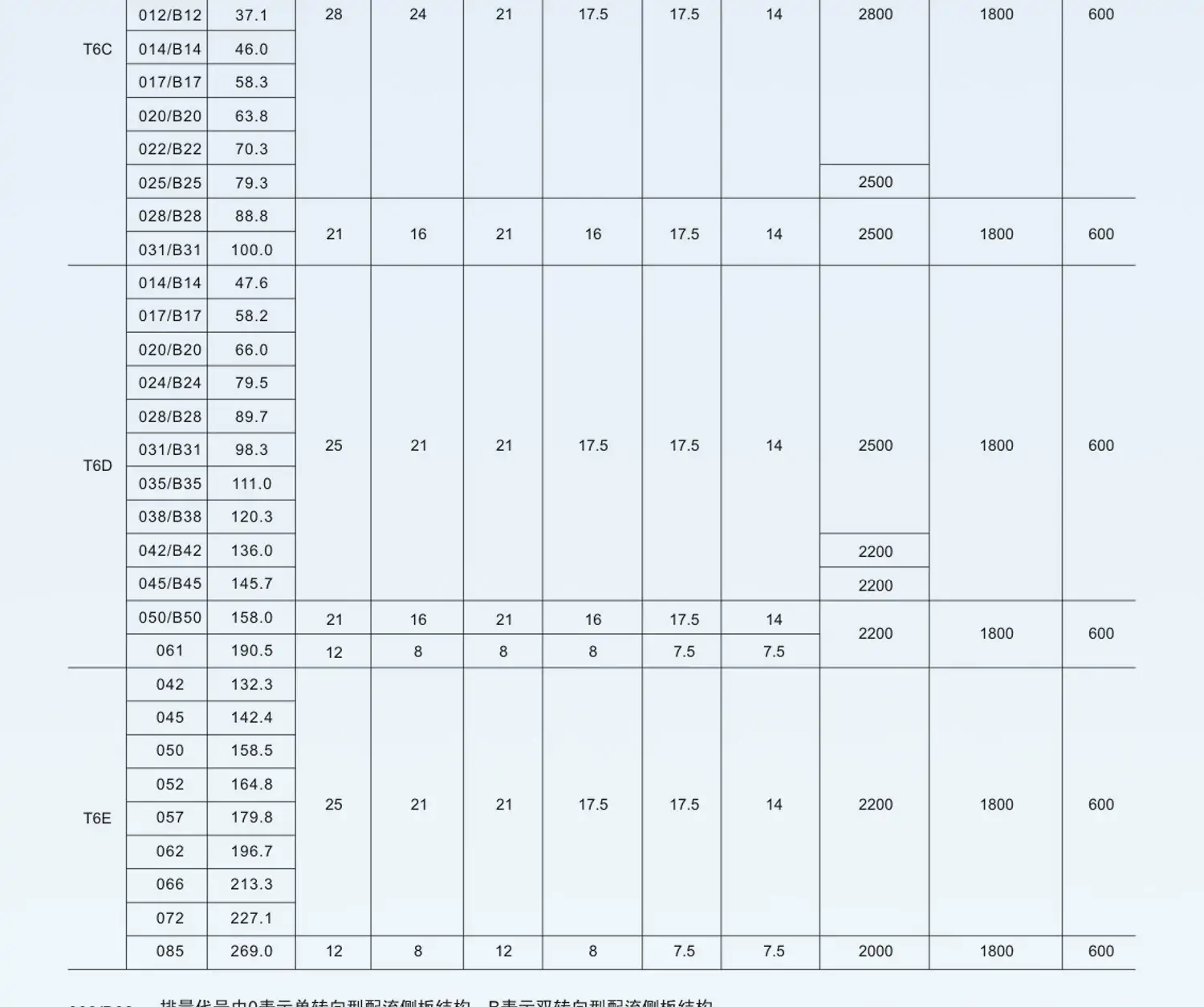

四、核心参数（标准工况）

• 排量范围（单泵）：前泵（P1）：50–158 mL/r中泵（P2）：50–158 mL/r后泵（P3）：50–100 mL/r
• 最高连续压力：P1：240 bar（24 MPa）P2：240 bar（24 MPa）P3：280 bar（28 MPa）
• 峰值压力：P1/P2/P3：280–300 bar
• 额定转速：600–2200 rpm（推荐 1200–1800 rpm）
• 容积效率：≥93%（150 bar、1500 rpm）
• 噪声：≤70 dB（A）（150 bar、1500 rpm）
• 介质粘度：10–2000 cSt（推荐 32–68 cSt 抗磨液压油）
• 工作温度：−20℃～+80℃（氟橡胶密封可达 + 120℃）
• 重量：≈56 kg

五、性能优势

1. 高效节能：三联独立控制，按需输出，容积效率高、内泄小、发热低，能耗比多泵组合低15%–20%。
2. 高压耐久：240–280 bar 高压能力，双唇叶片 + 柱销驱动，加厚壳体，寿命长、抗污染强。
3. 低噪平稳：三腔压力脉动抵消设计，运行安静，适合大型精密设备。
4. 结构紧凑：三联同轴集成，体积小于三台单泵，节省安装空间。
5. 维护简便：模块化泵芯可现场更换，无需专业工具，停机时间短。

六、典型应用

• 大型注塑机、压铸机、液压成型机（多动作同步回路）。
• 工程机械（大型挖掘机、起重机）、冶金设备、船舶液压系统。
• 工业自动化生产线（多执行器独立压力 / 流量控制）。

七、使用注意

1. 油液清洁：建议10 μm过滤，避免颗粒磨损定子与叶片。
2. 转速控制：避免长期低于 600 rpm 或高于 2200 rpm，防止效率下降或过热。
3. 压力匹配：长期工作压力建议≤200 bar（P1/P2）、≤250 bar（P3），延长泵芯寿命。
4. 安装同轴度：联轴器同轴度≤0.1 mm，避免振动与异响。
