液压阀的连接方式，你知道有几种吗？
液压系统中常常会看到各种各样的液压阀，那么液压阀的连接方式有哪些呢？ 液压阀的连接方式有管式连接、板式连接、集成块式及叠加阀式等，下面就给大家来分别介绍一下。
1.管式连接
管式连接又称螺纹式连接，它是将管式液压阀用管接头及油管连接起来，流量大的则用法兰连接。其优点是系统中各阀间油液走向一目了然;缺点是结构分散，所占液压系统空间较大，节路交错，不便于装拆、维修，管接头处易漏油和进入空气，而且易产生振动和噪声.目前应用较少。

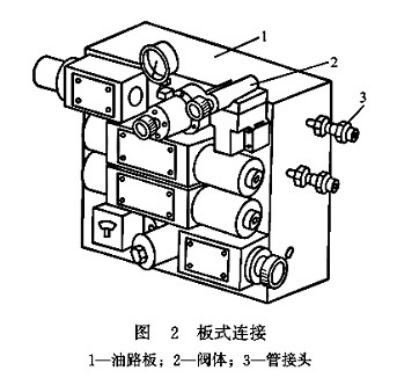

2.板式连接
如图2所示，板式连接是将板式液压阀统一安装在连接板上，采用的连接板有以下几种形式。
(1)单层连接板 阀类元件装在竖立的连接板的前面，阀间油路在板后用油管连接。这种连接板简单，检查油路方便，但板上管路多，装拆不方便。
(2)双层连接板 在两板间加工出连接阀的油路.两块板再用粘接剂或螺钉固定在一起，工艺简单，结构紧凑.但液压站系统压力高时易出现漏油串腔问题。
(3)整体连接板 整体连接板在一块较厚的连接板中钻孔或铸孔作为连接油路，结构紧凑，油管少，工作可靠，但加工较困难，油路的压力损失较大。
3.集成块式
如图3所示，集成块式液压装置，将板式液压元件安装在集成块周围三个侧面上，另外一个侧面则安装管接头，通过油管连接到液压执行元件。块内由钻孔形成的连接油路，块与装在其周围的元件构成一个集成块组，通常是可以完成一定功能的典型基本回路，如调压回路块、调速回路块等.一个液压系统往往由几个集成块组所组成，各集成块与顶盖、底板一起用长螺栓联接起来。这种连接形式具有结构紧凑，油管少，可标准化，便于设计与制造等优点.因此它在各种液压系统中得到了广泛的应用。
4.叠加阀式
如图4所示，叠加阀式是液压装置集成化的另外一种方式，每个叠加阀既起控制阀的作用，又起通道体的作用。因此，叠加阀式配置不需要另外的连接块，只需用长螺栓直接将各叠加阀彼装在底板块上，即可组成所需的液压系统。
